QUICK CHANGE FILTER SWF-110 / SWF-180

  • Filters of type series 6 are specially designed for high pressures of 6.0 bar
  • Categorization acc. to Directive 2014/68/EU
  • Suitable for aggressive, corrosive, polluted media with low viscosity
  • Easy handling
  • High flow capacity and a low pressure drop
  • Opening the filter cover by means of a lever
  • Filtermedia fabric hose, flow from inside to outside – large dirt intake capacity
  • Contamination is collected inside the filter, reduced cleaning effort
  • Less production stop while changing filter media

STANDARD FEATURES:

  • Version in PP
  • Sealings in EPDM
  • Connection for air bleeding unit and blind cap
  • Surrounding splash guard
  • Standard union bush
  • Micron rating between 1 and 200 μm
  • Plug lever


OPTIONS:

  • Version in PVDF
  • Sealings in FPM or FEP coated
  • Air bleeding unit
  • Connection for pressure gauge
  • Lid switch and/or locking tool
  • Flange connections or similar on customer’s request
  • Mounted lever
  • Cartridge filter insert 10″ / 20″ (SWF-110)
Description of the image

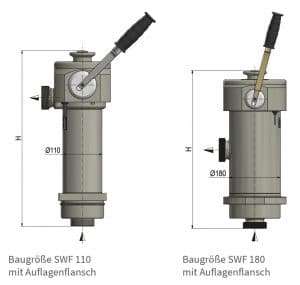

TYPE AND SIZE:

Description of the image

MAXIMUM USE TEMPERATURES:

MAX. OPERATING TEMPERATURES:

Polypropylene (PP) (PPN) max. 75°C
Polyvenylidenfluoride (PVDF) max. 95°C

SWF 110 (depending on filter insert) available with:
• Filtercloth
• Filtercambric
• 10“ and 20“ Filter cartridge

SWF 180 available with:
• Filtercloth
